DSLR Microscope Adapter - NY-1S

APS-C DSLR and mirrorless microscope adapter for high-resolution imaging

NY-1S is a relay-lens microscope adapter designed to connect interchangeable-lens cameras to microscopes. It supports microscope photography, video recording, documentation and inspection work when the camera mount and microscope-side connection are properly matched.

The optical system is optimized for APS-C DSLR and mirrorless cameras. For full-frame camera bodies, please use the NY-1S35 full-frame adapter series instead.

APS-C Camera Adapter Relay-Lens Type DSLR / Mirrorless Microscope Photo
NY-1S DSLR microscope adapter for APS-C camera microscope imaging
Camera Attachments Field of View Installation Guide Compatible Model

NY-1S — Price

Product Model Price NY-1S APS-C DSLR and mirrorless microscope adapter
DSLR Microscope Adapter NY-1S US$ 650

Camera Mount Attachments

Attachment for DSLR Models Model Price
Canon EOS attachment NY1S-CA US$ 34
Nikon F-mount attachment NY1S-FA US$ 34
Sony α, Minolta, Konica Minolta attachment NY1S-αA US$ 34
Olympus Four Thirds attachment NY1S-OFA US$ 34
Olympus OM-mount attachment NY1S-OMA US$ 34
Pentax attachment NY1S-PA US$ 34
Attachment for Mirrorless Models Model Price
Canon mirrorless attachment NY1S-CMA US$ 60
Nikon mirrorless attachment NY1S-N1A US$ 60
Sony NEX / E-mount attachment NY1S-EA US$ 60
Micro Four Thirds attachment NY1S-MOFA US$ 60
Pentax Q-mount attachment NY1S-QA US$ 60
Canon R series attachment set (NY1S-CA + EF-R) NY1S-PRA US$ 205
Camera mount attachment for DSLR cameras
DSLR camera mount
attachment

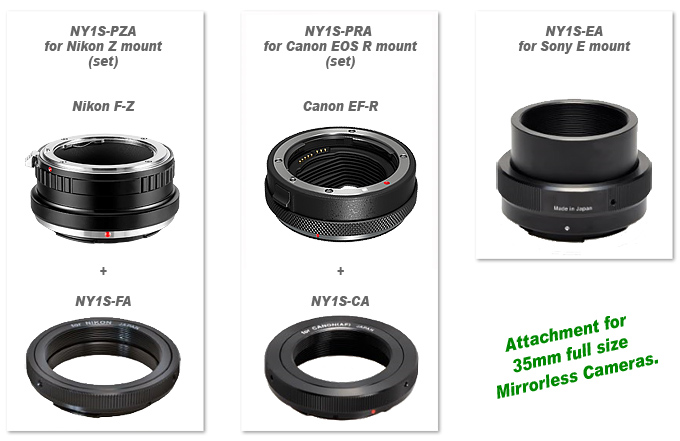

Camera mount attachment for mirrorless cameras
Mirrorless camera mount
attachment
Canon R series mirrorless attachment set
Canon R series
attachment set

Optional Microscope-Side Items

Optional Item Model Price
Olympus PT type phototube sleeve NY-BH US$ 53
JIS type phototube sleeve NY-JIS US$ 53
Microscope-side compatibility depends on the trinocular port, phototube, eyepiece tube and existing adapter configuration. Please confirm the microscope model before ordering.

Key Features of NY-1S

Built-In Relay Lens for Camera Imaging

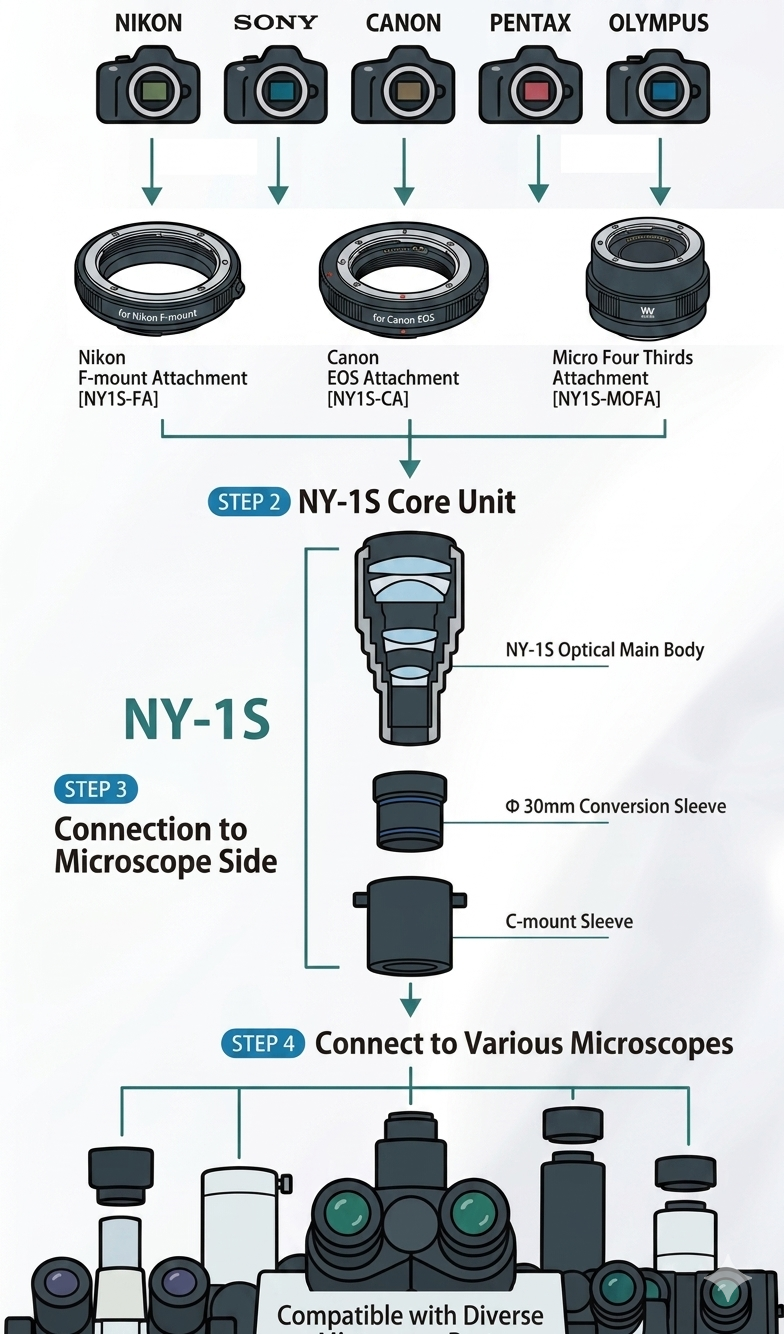

NY-1S includes an optical relay lens system developed for DSLR and mirrorless microscope imaging. It helps project the microscope image to the camera sensor with practical field coverage for APS-C cameras.

Built-in relay lens system of NY-1S microscope adapter

Reduced Vignetting and Optical Aberration

The adapter is designed to reduce vignetting, distortion and chromatic aberration compared with simple mechanical-only camera coupling methods. Actual image field depends on the microscope optical path and camera format.

Remote live view control for microscope imaging

Remote Live View Operation

Many DSLR and mirrorless cameras support PC-based live view, remote shutter control and image transfer. This makes focusing, checking composition and archiving images easier during microscope observation.

Close-up of NY-1S eyepiece tube connection

Eyepiece Tube Connection

NY-1S can be attached to suitable microscope eyepiece tubes, including common 23.2 mm and 30 mm tube configurations when the mechanical fit is appropriate.

Compatible Microscope Applications

  • Stereo microscopes for inspection and documentation
  • Biological microscopes for laboratory imaging
  • Metallurgical microscopes for material observation
  • Measuring microscopes and industrial optical systems
  • Eyepiece tube connection, when mechanically suitable
  • Trinocular phototube connection with proper sleeve/adaptation
  • C-mount paths, depending on microscope-side configuration
  • Camera mount attachment selected by camera body mount
Fluorescence microscope example for DSLR microscope adapter NY-1S adapter sample view
Important: NY-1S is not a universal mechanical adapter by itself.
The microscope model, port size and camera mount must be checked before final selection.

Related Setup and Support Pages

  • Confirm trinocular port attachment and microscope-side mechanical compatibility.
  • Review field of view before selecting the camera and relay-lens configuration.
  • Check sample images to understand expected image quality and application examples.
Installation Guide Field of View Sample Images Compatible Model
