Which camera is suitable for biological microscope imaging?

The ARTCAM-150P5-WOM uses a CCD color image sensor and is suitable when smooth gradation is important, including many biological microscope applications.

Which camera is suitable for stereo or metallurgical microscope imaging?

The ARTCAM-300MI-WOM uses a CMOS color image sensor with 3.0 megapixel resolution and is suitable for many stereo microscope and metallurgical microscope documentation workflows.

Is a phototube sleeve required?

Depending on the microscope photo port, optional sleeves such as NY-BH, NY-JIS or NY-NF may be required. The microscope model and photo port should be checked before ordering.

C-Mount USB Camera -
ARTCAM-150P5-WOM / 300MI-WOM

USB2.0 C-mount microscope camera sets for image capture, documentation and measurement workflows.

These camera sets combine an industrial-purpose ARTCAM USB camera with the NY-CZ
C-mount microscope adapter. The USB2.0 interface sends image data directly to a PC without a capture board, and the camera-side memory helps reduce dropped data during transfer.

C-Mount USB Camera CCD / CMOS NY-CZ Adapter Set Measurement Software Option

Set & Price Options Specifications Installation Field of View

Overview

Hard Casing USB2.0 Camera

The ARTCAM-150P5-WOM and ARTCAM-300MI-WOM are compact C-mount USB cameras designed for industrial and microscope imaging use. They can be used for live image display, still-image capture and documentation through PC-based viewing software.

ARTCAM WOM series USB camera body — WOM series compact hard-casing
USB camera body.

ARTCAM C-mount USB microscope camera set

CCD Sensor Model

The 1.5MP ARTCAM-150P5-WOM uses a CCD color image sensor. It is a practical choice when gradation and stable image tone are important.

Model: ARTCAM-150P5-WOM
Resolution: 1392 × 1040
Set model: NYCZ-ART150P5

CMOS Sensor Model

The 3.0MP ARTCAM-300MI-WOM uses a CMOS color image sensor. It provides higher pixel count at a lower set price.

Model: ARTCAM-300MI-WOM
Resolution: 2048 × 1536
Set model: NYCZ-ART300MI

Set Composition & Price

C-mount USB camera microscope set composition

CCD Sensor Set - recommended for smooth gradation and many biological microscope applications

NYCZ-ART150P5
ARTCAM-150P5-WOM	1.5MP C-mount USB camera with USB cable / software	+	US$ 1,404
NY-CZ	C-mount camera microscope adapter
NYCZ-ART150P5-MSR
NYCZ-ART150P5 set with ART-Measure measurement & filing software			US$ 1,853

CMOS Sensor Set - higher pixel count and cost-effective microscope documentation

NYCZ-ART300MI
ARTCAM-300MI-WOM	3.0MP C-mount USB camera with USB cable / software	+	US$ 1,168
NY-CZ	C-mount camera microscope adapter
NYCZ-ART300MI-MSR
NYCZ-ART300MI set with ART-Measure measurement & filing software			US$ 1,617

Set configurations include the C-mount USB camera and the NY-CZ C-mount microscope adapter. Optional ART-Measure software can be added when measurement and filing functions are required.

Optional Items

Item	Part No.	Price
Olympus PT type phototube sleeve	NY-BH	US$ 53
JIS type phototube sleeve	NY-JIS	US$ 53
Nikon F type phototube sleeve	NY-NF	US$ 26
2D measurement & filing software, with camera	ART-Measure	US$ 449
2D measurement & filing software, individual	ART-Measure	US$ 654

The required sleeve depends on the microscope photo port standard. Please confirm the microscope manufacturer, model and phototube type before selecting optional parts.

Specifications

Item	ARTCAM-150P5-WOM	ARTCAM-300MI-WOM
Image Sensor	CCD color image sensor	CMOS color image sensor
Resolution	1392 (H) × 1040 (V)	2048 (H) × 1536 (V)
Imaging Area	6.47 (H) × 4.83 (V) mm, 1/2 inch	6.55 (H) × 4.92 (V) mm, 1/2 inch
Shutter Type	Global shutter	Rolling shutter
Frame Rate	12 fps	12 fps
Shutter Speed	1/58824 - 1/12.5 sec.	1/19688 - 0.832 sec.
Interface	USB2.0 bulk transfer	USB2.0 bulk transfer
Power Consumption	Approx. under 2 W	Approx. under 2 W
Ambient Conditions	Operating temperature / humidity: 0-35°C / 10-80% RH, non-condensing
External Dimensions	50 (W) × 47 (H) × 49.7 (D) mm *Lens, tripod and protrusions not included.	50 (W) × 47 (H) × 41.7 (D) mm *Lens, tripod and protrusions not included.
Weight	Approx. 120 g *Lens, tripod and cable not included.	Approx. 110 g *Lens, tripod and cable not included.

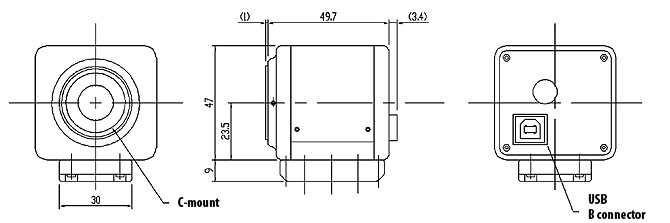

External Dimensions

System Requirements

Item	Recommended	Minimum Requirement
Chipset / USB	Intel chipset, ICH6 or later USB2.0 Enhanced Host Controller	USB2.0 Enhanced Host Controller
CPU	Intel Core 2 Duo 2.4GHz or equivalent	Intel Pentium 4 1.7GHz or equivalent
Memory	512MB or more	256MB or more
OS	Windows XP or later	Windows XP or later

Specifications and compatibility information are based on the available product information at the time of page preparation. Please confirm current availability, software support and microscope compatibility before ordering.
